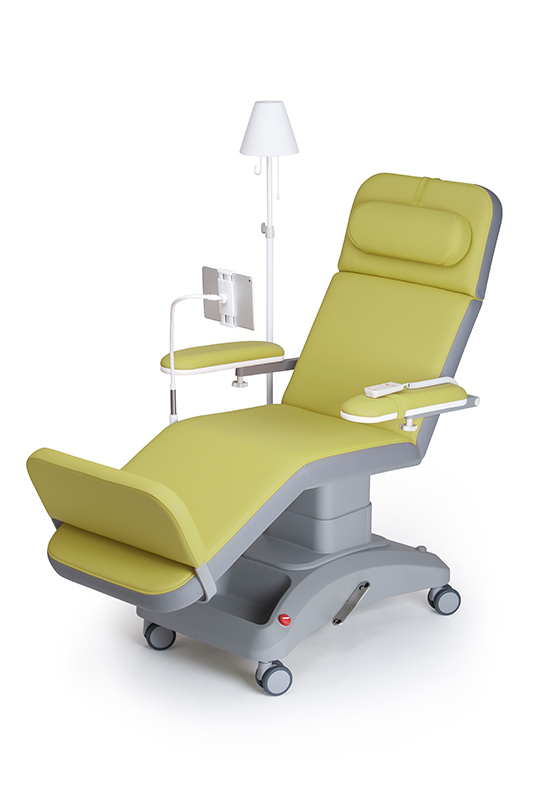

The DiaCare-3 therapy chair was designed with the specific needs of high-end medical clinics in mind. Its design is a harmonious blend of contemporary aesthetics, patient comfort, and easy maintenance. The chair’s underframe is constructed from composite plastic, ensuring self-support without any steel components, thereby minimizing the risk of corrosion, which is a significant concern in applications such as dialysis chairs. Special features like the icon lamp and built-in bluetooth speakers contribute to creating a homely atmosphere for the patients. Safety is our top priority, and all our models with seat tilting fully comply with the standars of 14° Trendelenburg position as well as the Perfectly horizontal Bed position.
Technical specification
| Seat height adjustment | 55-77Â cm | |
| Backrest adjusting range | 80° (-13° in TRB position) | |
| Seat tilt adjustment | 20° | |
| Legrest adjustment | 30° | |
| Footrest adjustment | 20 cm (motorised) | |
| Dimensions in seat position | L 142 x W 92 | |
| Size of upholstery | L 220 x W 60 x H 9.5 cm | |
| Armrest size | L 57 x W15 cm | |
| Castors size | 4x diameter 10 cm twin wheel castors for central operating brake | |
| Maximum load | 200 kg weight capacity | |
| Power supply | 100 – 240 V, 50/60 Hz, IPX6 | |
| Frame colour | RAL9001 or RAL7037 grey | |
| Applied directive and standards | 2017/745 (MDR) and harmonized standards | |
Adjustments
â—Ź Electronic adjustments
Multiple independent adjustment possibilities by 4+1 motors offer maximum patient comfort, plus a reduction in work for staff.
4 motors as standard:
- backrest
- seat tilt
- legrest
- seat height
Electronic footrest
The electronic footrest is optionally available.
Handset
Especially designed for medical applications:
- Longlife micro-switches are located under an exchangeable keypad foil
- Liquid proof housing with IP 67 protection
- Easy-to-use 13 buttons handset
Dedicated grey buttons for each movement.
- Yellow coloured buttons to set Entry, Bed positions by multimovement
- Individual buttons for optional movement (seat tilt adjustment and footrest adjustment)
Entry position
Supporting the entry
By using this
 button on the handset the chair can be brought to the upright (Entry) position automatically from any previous one. Thereby allowing the patient easily to enter or leave the chair.
Bed position
Perfectly horizontal Bed position
Especially designed construction ensures achieving perfectly horizontal Bed position for maximum patient comfort while passing through several relaxation positions.
By using this
  button on handset the chair can be brought automatically into the BED position.

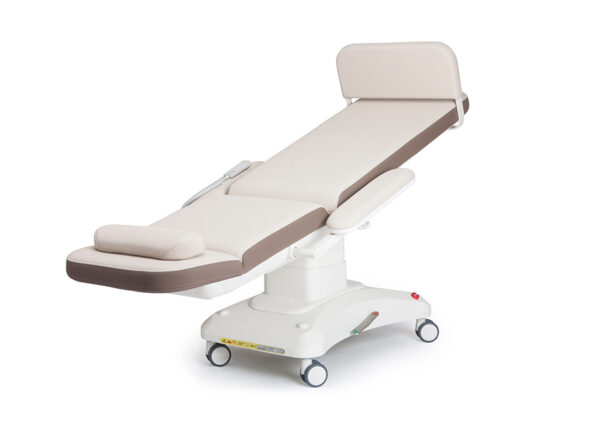

Trendelenburg Position
Real TRB
The backrest adjusting range ensures REAL Trendelenburg position in compliance with EN 60601-2-52:
“with the mattress support platform in the flat position, tilting of the entire mattress support platform a minimum of 12 degrees so that the Patient’s head is lower than the circulatory centre point of the body.”
There are two ways of reaching Trendelenburg position by using the red buttons:
- on handset by usingÂ
 button - additional foot-switches on both sides of underframe (optional)
Tilt-up armrest
The solid upholstered armrest makes it possible to achieve the most suitable and restful arm position for any physique.
The tilt-up armrest is easily removable.
Safety armrest mechanism against crash-down.
The multilayered soft armrest cushion is completely sealed against liquids and ensures improved patient comfort.
The distance between armrests can be adjusted also by swivelling completely.
Brake system/castors
Diameter 10 cm twin wheel castors for central operating brake.
This twin wheel castor type is specially designed for central operating brake system.
- Twin wheel rotational motion in both directions (lockable)
New design & construction
Exchangeable upholstery
It has been designed according to the latest developments in orthopaedics and ergonomics.
Can be removed easily with a few movements for cleaning or maintenance.
Blood resistant artificial leather which is resistant to disinfectants, blood and urine too.
DiaCare DuoShape upholstery in any colour combination is available as standard. Several upholstery colour combination available upon request.
Many other colour combinations available
